Alpine Linux : A Tiny Tiny Docker Image

Do you know Alpine Linux ? It’s a Tiny Linux distribution based on busybox.

Every one working with docker now that it takes a lot of disk space. That’s why here at ERDF Lyon we are using Docker-Alpine to build our own services..

It is very cool to have a very small containers, for example the base image is only 5 Mb, comparatively to a debian base docker or a centos it’s amazing !!

Here is a list of some images builds by our team :

[root@XXXXX ~]# docker images

REPOSITORY                                               TAG                 IMAGE ID            CREATED             VIRTUAL SIZE

library/alpine-java                  latest              b1ac8a415cc2        8 minutes ago       167 MB

library/alpine-nginx-php             latest              04dd1dd5f3a8        36 minutes ago      73.07 MB

library/alpine-adaje-nginx           latest              babdce2f7acb        2 hours ago         22.34 MB

library/alpine-influxdb              latest              8c1c8602ab3d        5 hours ago         43.71 MB

library/alpine-grafana               latest              87e008359f09        7 hours ago         105 MB

alpine-libc                          latest              768e1a26255d        8 hours ago         14.01 MB

alpine                               latest              809d1eb48c44        9 weeks ago         5.244 MB

library/centos6                      latest              5af3557457ba        5 months ago        396.1 MB



as you can see the base alpine is only 5.2MB, an Alpine image with nginx is only 43 MB and even an image with the full java runtime pre-installed is 167MB.

Against a centos6 base (with nothing on it) that takes nearly 400MB : y’a pas photo !!



We already have our own docker registry so we just have to build and push a lot of new images base on this tiny Docker image..

Here what’s in the pipeline :

  • alpine-mysql
  • alpine-postgresql
  • alpine-apache (already build from a centos)
  • alpine-zabbix-server
  • alpine-zabbix-frontend
  • alpine-jenkins (already build from a centos)
  • alpine-python (already build from a centos)
  • alpine-ansible (already build from a centos)

How to Use Ansible with Jenkins and Gitlab

ansible_logo-360x288

Ansible

In this article I will try to explain how, here at OI-ERDF Lyon we use ansible Through Jenkins.

Ansible is an Open source Deployment and automation tool.

It is based on ssh, so no agents are required and it’s compatible on Linux / Aix / Solaris and even Windows !

It use playbooks, writted in YAML, to describe the list of tasks that have to be executed on remote servers.

Each task can be associated to a specific host or host group defined in an inventory.

For example :

we have an inventory like this:

dev\

    group_vars\
        main.yml
    host_vars\
        main.yml
    hosts.txt

recette\

    group_vars\
        main.yml
    host_vars\
        main.yml
    hosts.txt

production

    group_vars\
        main.yml
    host_vars\
        main.yml
    hosts.txt





where a host file looks like :

[apache]

server1

server2

[database]

server3

server4

[mysql]

server3

[postgresql]

server4





then a playbook define a list of tasks:

hosts: all

  - tasks:

    - name: "display host type"

      shell: uname

      register: host_type

    - debug: host_type.stdout

hosts: apache

  - roles:

    - role: apache

hosts: mysql

  - roles:

    - roles: mysql_server

hosts: postgresql

  - roles:

    - roles: postgresql_server

hosts: database

  - roles:

    - role: mysql_client





Here we can see that all hosts will execute the uname command and display the result, then each inventory group is affected to the corresponding role.

Simple, clear, powerfull.

to launch a playbook just use :

ansible-playbook -i dev/hosts.txt playbook.yml

Gitlab

GitLab-logo

First, we need a version control system to store all our ansible stuffs.

We choosed Gitlab, cause it has a lot of good features :

  • User friendly
  • Wiki integrated for all projects
  • Issue tracker
  • ldap auth integration
  • Open source
  • hooks
  • and more…

One it’s installed with the community edition packages (rpm or deb) on a dedicated server, you juste have to create a new group « ANSIBLE » in which all the galaxy will be stored.

Ansible Galaxy



galaxy_logo_main

The best way to capitalize and re-use Ansible roles, modules and plugins is the Ansible Galaxy.

Our servers are in DMZ so we can’t access the internet web site ansible galaxy. We have to create our own Galaxy with our own ansible roles and module.

In the ANSIBLE group previously created in Gitlab juste create as many role, modules and plugins as you need for ansible deployments.

To find easlily our modules we have defined some dev rules :

  • all ansible roles starts with « role_ »
  • all ansible modules starts with « module_ »
  • all ansible plugins starts with « plugin_ »

a role has the following structure :

role_example:
    defaults\
        main.yml
    files\
        file1
        file2
    handlers\
        main.yml
    meta\
        main.yml
    tasks\
        main.yml
        include1.yml
        include2.yml
    templates\
        template1.conf.j2
        template2.conf.j2
    vars\
        main.yml
    README.md

Where :

  • defaults is the directory where all the defaults variables for the role are defined. Each var can be overloaded by a project by a host var / group var or extra var.
  • files is the directory where the role can store fixed files (almost not used)
  • handlers is the directory where the ansible handlers tasks are defined for the role (i.e. restart service etc…)
  • meta is used to store the ansible galaxy metadata (author / description / dependencies / tags / etc..)
  • tasks is the directory where all the the role main tasks are defined (create FS, apt-get, yum, deploy config file, restart service, etc…)
  • templates is the directory where we store the role’s Jinja2 template files (withe the {{ variables }} replaced)
  • vars is a directory where are stored role specific variables. This variable cannot be overloaded !
  • README.md is the Markdown readme file used to describe the role and defaults vars that can be overridden.

Then publish your role to a new project role_example in your ansible group in Gitlab.

Ansible Projects

Now we can create projects that will use the galaxy.

To use the Ansible Galaxy, just create re requirements.yml file and put

- src: git+https://gitlab.aperogeek.fr/ansible/role_apache.git
  path: roles
  name: role_apache

- src: git+https://gitlab.aperogeek.fr/ansible/role_mysql_server.git
  path: roles
  name: role_mysql

- src: git+https://gitlab.aperogeek.fr/ansible/role_postgresql.git
  path: roles
  name: role_postgresql

- src: git+https://gitlab.aperogeek.fr/ansible/role_mysql_client.git
  path: roles
  name: role_mysql_client

- src: git+https://gitlab.aperogeek.fr/ansible/plugin_tail.git
  path: filter_plugins
  name: tail

- src: git+https://gitlab.aperogeek.fr/ansible/module_assert.git
  path: library
  name: assert





And install it to your project by using the command

ansible-galaxy install -r requirements.yml

This will fetch all roles, plugins and modules into the corrects directory.

Now you can use this roles into your project and overload roles defaults variable with your inventory.

Of course the project use Gitlab to store the playbooks,  inventory and requirements.

Jenkins

jenkins

Now we have :

  • Gitlab to store ansible galaxy and projects playbooks and inventory
  • Ansible Galaxy with our own roles that respect our dev rules and the enterprise standards
  • Projects that use the ansible galaxy to deploy their apps

All we need is a web UI to simplify the deployments.

Jenkins is a unit test / task launcher with a lot of plugins like GIT, MultiSCM, Rebluid, etc..

We have created jobs that will :

  • Checkout our project playbook, inventory and requirements file (with the Jenkins MultiSCM plugin)
  • Install the requirements in the job workspace (ansible-galaxy install -r requirements.yml)
  • launch the ansible playbook (ansible-playbook -i ${env}/hosts.txt playbook.yml

The job has some parameters like

  • git branch : the name of the git branch to use (master by default)
  • env : the name of the environnement we want to deploy (aka the inventory file)
  • extra var : if you want to specify some more extra vars
  • ansible options : to allow users to specify more options (–limit=apache for example).

jenkins_job

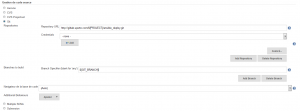

Then the job use the git or MultiSCM plugin to fetch playbooks from gitlab

jenkins_git_config



Don’t forget to create a deploy key in gitlab with the public key of the jenkins user (www-data for example).

And finally launch the playbook from the job workspace :

jenkins_build_step

Now every user with jenkins permissions can run deployments on any environment with just a few clicks

Conclusion

Ansible Galaxy with Gitlab and Jenkins give a lot of benefits :

  • Stabilization or Production deployments (no more forgotten tasks)
  • Shortest deployments duration (we can deploy all applications stack from scratch in less than an hour with ansible (a week before) )
  • Capitalization : each project can re-use roles from the galaxy and contribute !
  • Documentation : Gitlab integrate a wiki, so each role of the galaxy is documented. (We also have example projects, 10 steps tutorials)
  • Collaboration through Gitlab issue system.
  • Simplicity : Just click on the BIG DEPLOY button !

And you : which automation system are you using ? Chef ? Puppet ?
